1. 0445020061 Diesel Fuel Pump Introduction

1.1. 0445020061 Diesel Fuel Pump Basic Information

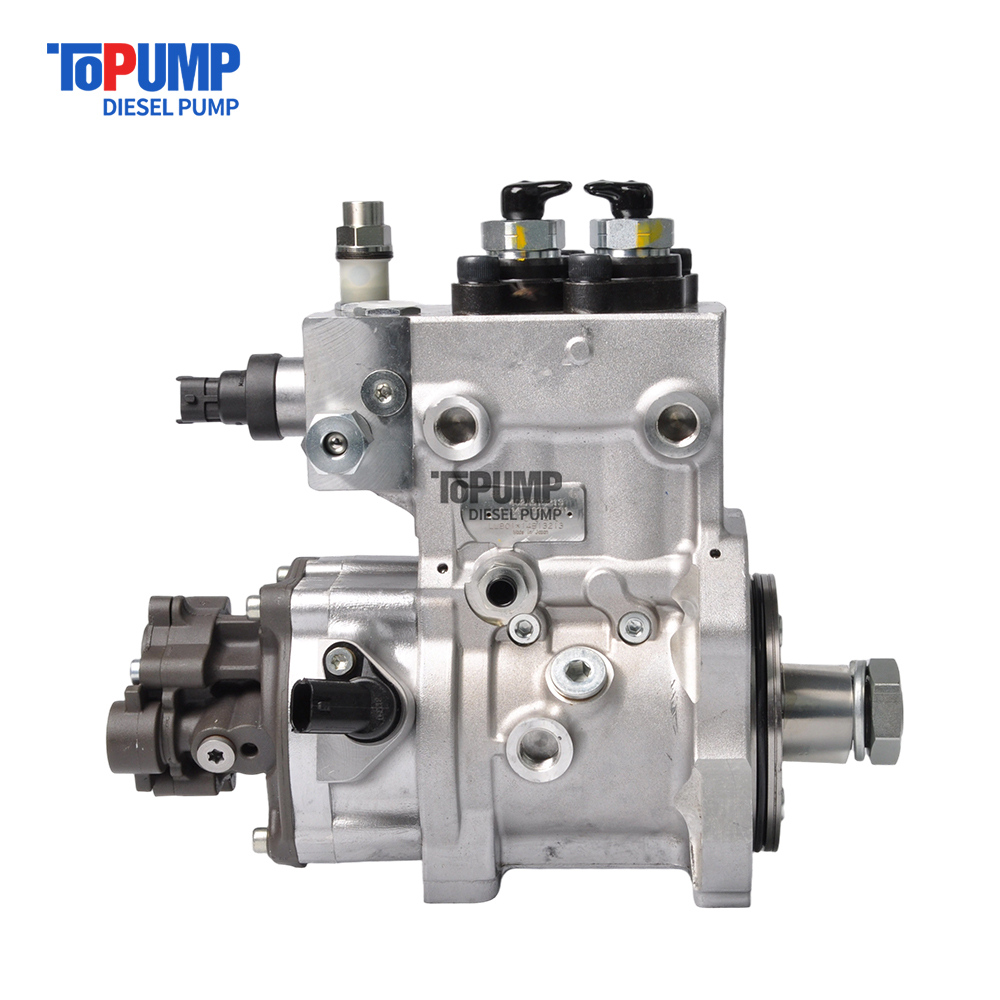

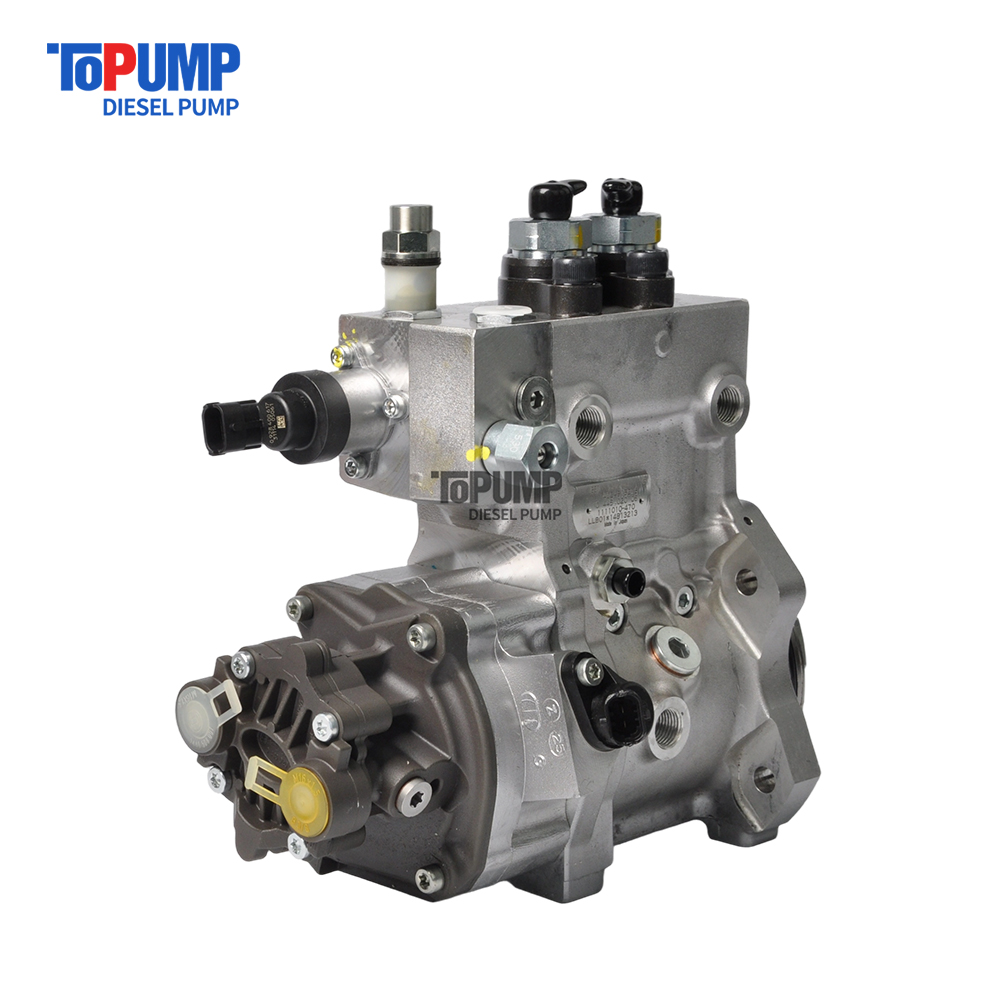

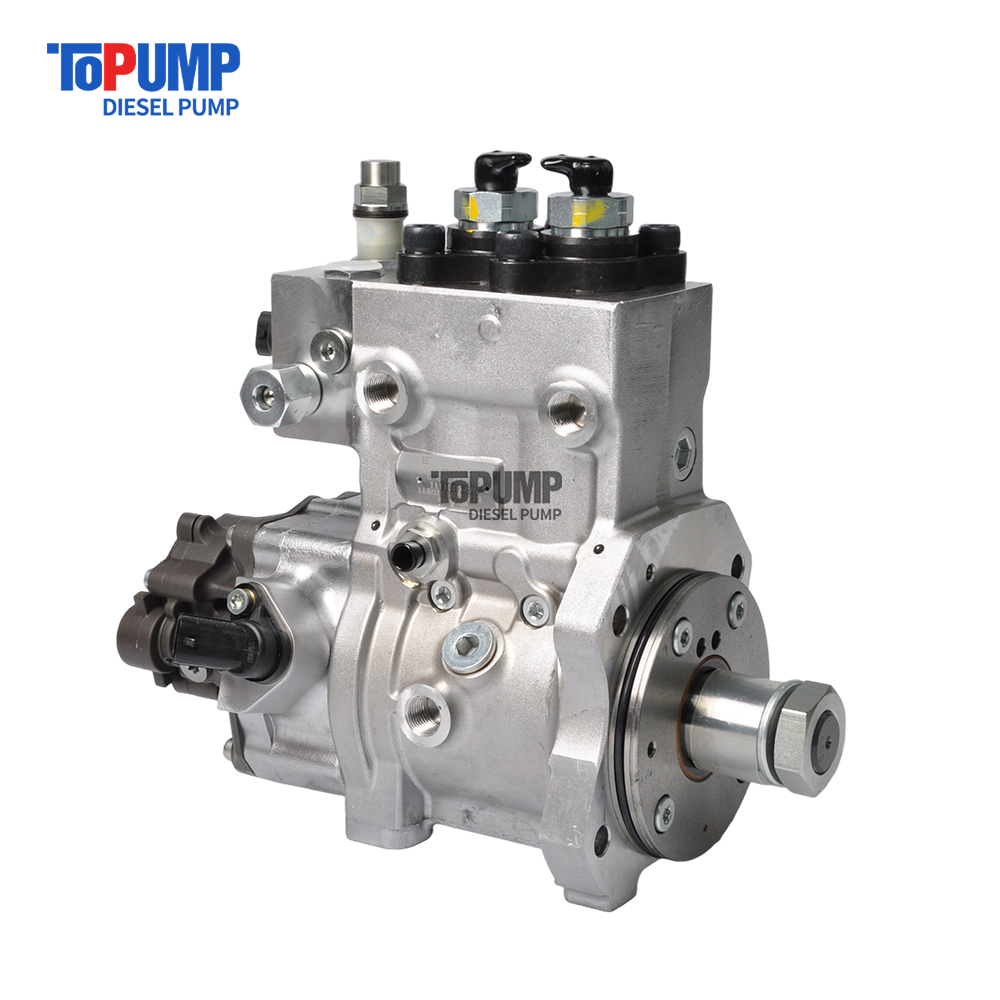

Title	Common Rail 0445020061 Diesel Fuel Pump CP2S2 Series	Quality
SKU	L30000B2B020061	Re-manufactured



1.2. 0445020061 Diesel Fuel Pump Common Part Number

• Diesel Fuel Pump Exchange Information

Diesel Fuel Pump Part Number	Car Model	Universal Number	OE Number
0445020061	FAW	/	1111010A470-0000



• Diesel Fuel Pump Application Information

Vehicle Brand	Engine Model	Production Date	Power (KW)	Horse Power	Emission (L)	Cylinder	Power Source (V)
FAW	CA6DF_EU3	01/2006 –	240	326	6.6	6	24



• Diesel Fuel Pump’s Common Writing Methods

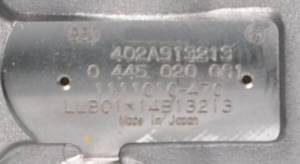

0445020061, 0 445 020 061, 0445 020 061, 0445020 061, 0 445 020061, 0 445020061,1111010A470-0000, 1111010A4700000



1.3. 0445020061 Diesel Fuel Pump Parameters

Diesel Fuel Pump Adaptation System:  Common Rail System

Diesel Fuel Pump Series:  CR/CPN2S2/L600/10-578911S Series

Diesel Fuel Pump Type:  High Pressure Pump, CR System



1.4. 0445020061 Diesel Fuel Pump Specifications And Dimensions

Diesel Fuel Pump Size:  28cm* 26cm *23 cm

Diesel Fuel Pump Net Weight:  7.98kg

Diesel Fuel Pump Gross Weight:  8kg

Diesel Fuel Pump Quality：Re-manufactured

Diesel Fuel Pump Package Size:  30cm*28cm *25 cm

Diesel Fuel Pump Type:  High Pressure Diesel Fuel Pump

Diesel Fuel Pump MOQ：1 piece



2. 0445020061 Diesel Fuel Pump Customization Service

• Diesel Fuel Pump Customization Service Coverage: Meet OEM manufacturers’ customization needs for shell engraving, logo engraving, diesel fuel pump internal packaging, diesel fuel pump external packaging and labels, etc.

NO.	1	2	3
Name	Diesel Fuel Pump Shell Engraving	Diesel Fuel Pump Packaging	White Label



• Diesel Fuel Pump Customization Service Requirements:

The purchase of customized diesel fuel pump is no less than 10 pieces.

The purchase of customized diesel fuel pump boxes is no less than 1000 pieces.

When customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.

Once the customized diesel fuel pump is sold, it can’t be returned or exchanged if there is no quality problems.



3. 0445020061 Diesel Fuel Pump Storage Standards

(1) Choose a suitable storage place

The warehouse and cargo yard where the diesel fuel pumps are stored should be kept clean and dry, and away from the factory buildings that generate harmful gases and dust; do not mix with acid, alkali, salt and other substances; the storage place should have a good drainage system; the cargo yard should be flattened with gravel or furnace ash etc. to enhance the water permeability of the surface layer to keep the reservoir area dry.



(2) Strict storage requirements

Strict inspections should be carried out when the diesel fuel pumps are put into storage, the surface cleaning work should be done well to remove water traces, oil stains, ash and other dirt, remove the rust and do anti-rust treatment in time. Packaged diesel fuel pumps must be protected from damage.



(3) Keep the warehouse dry and do moisture-proof work

The relative humidity is usually below 70% for the diesel fuel pumps placed in the room, and the corrosion of the diesel fuel pumps is significantly reduced.

Fuel pumps must be stored in the warehouse, and they are forbidden to store in the same warehouse with commodities with high water content.



(4) Reasonable stacking

After the diesel fuel pump is exposed to rain, the corrosion rate will increase significantly. The purpose of sealing is to isolate the diesel fuel pump from rainwater and humid air, so the warehouse window should be checked in time to avoid rainwater entering the warehouse.

If the diesel fuel pump package is damaged, it should be repaired or replaced; when the package is damp, the packaging material should be dried; if the original anti-corrosion and oil applied at the factory is found to be damaged or dried up, it should be cleaned and re-applied oil in time.

• It is forbidden to leave the diesel fuel pumpexposed in the air for a long time.
• It is forbidden to store acid, alkali, salt and other substances together with the diesel fuel pump.
• The unpacked diesel fuel pumpmust be rust-proof during secondary storage.



4. 0445020061 Diesel Fuel Pump Shipping Package

Domestic express packaging: Usually wrapped in waterproof scotch tape, such as picture No.1.

International express packaging: Wrapped with waterproof yellow tape after wrapping the black protective film, such as picture No. 2.

Pallet Shipping: Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 3, also, the products can be packaged according to customers’ requirements.



No.	1	2	3
Name	Domestic Express Packaging	International Express Packaging	Pallet Shipping
Description	Wrapped with transparent tape	Wrapped with yellow tape after wrapping black protective film	Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
